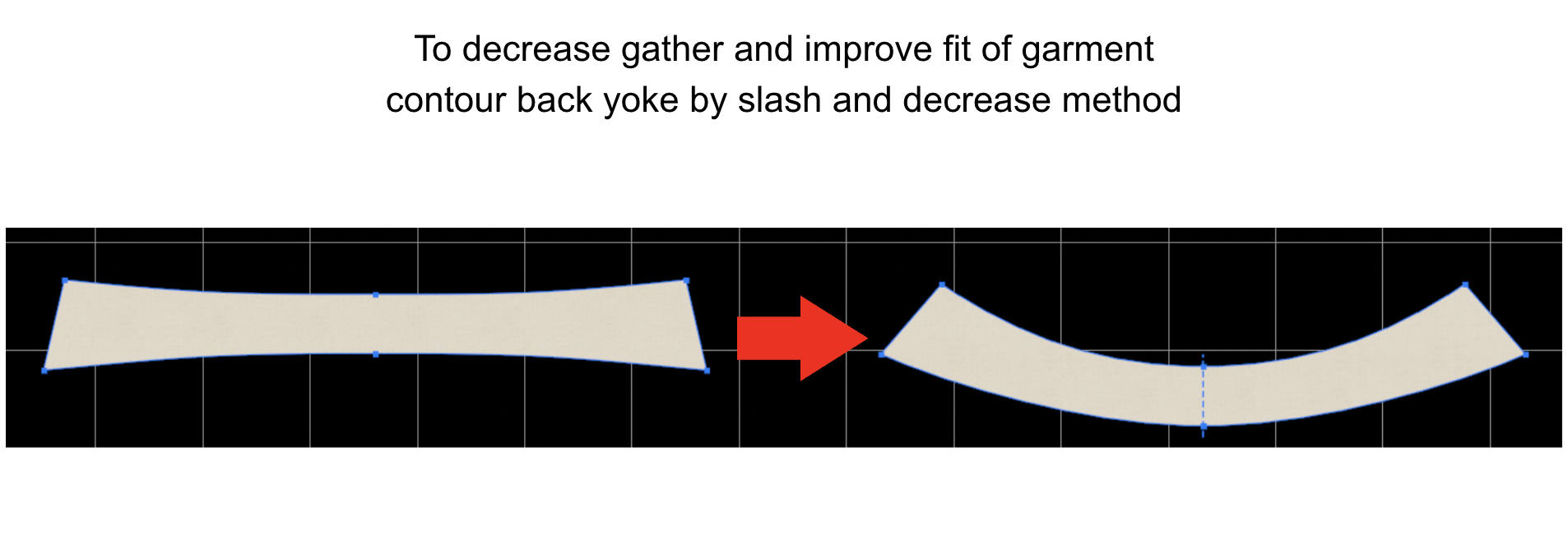

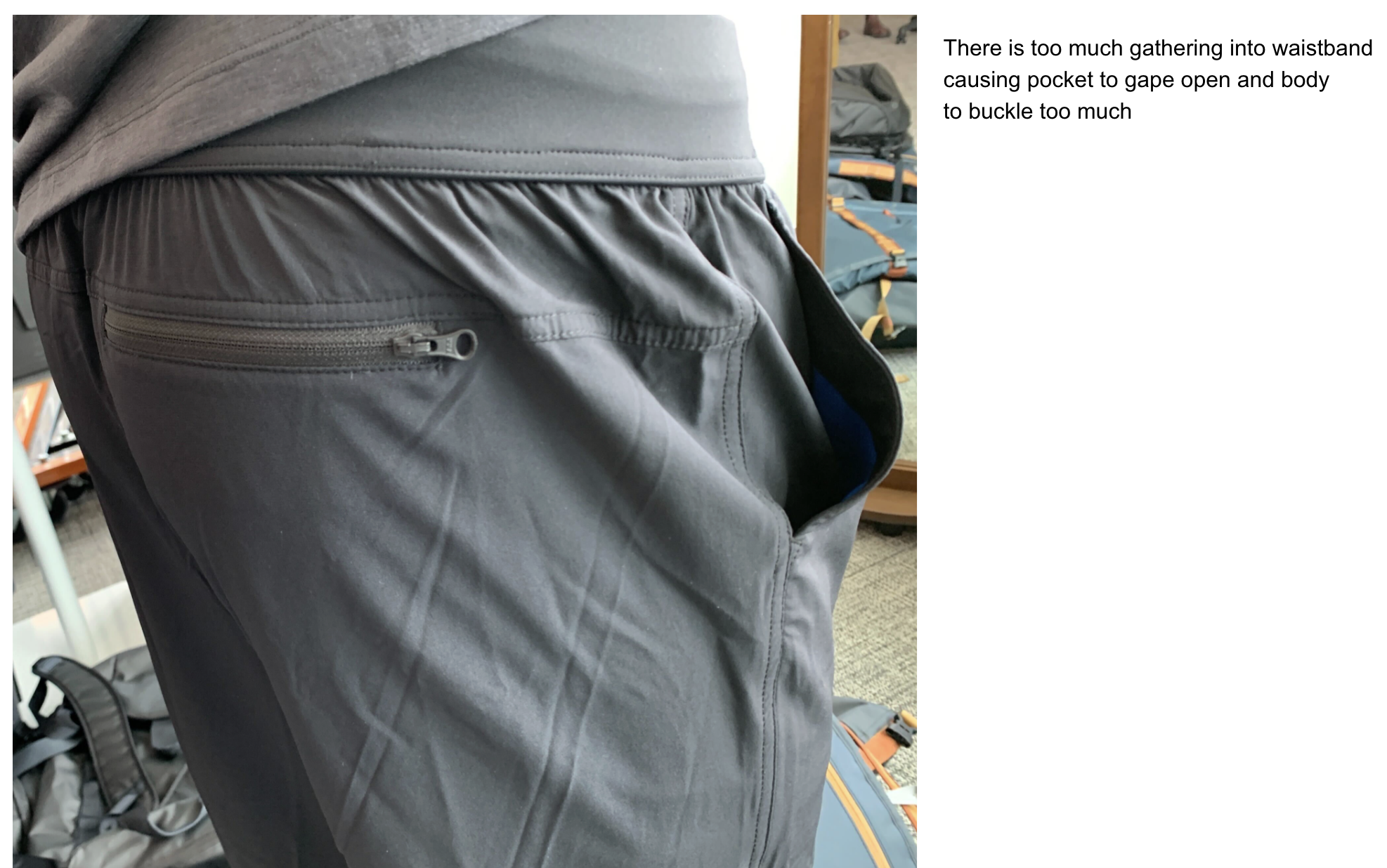

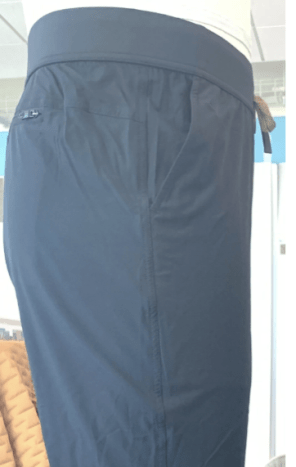

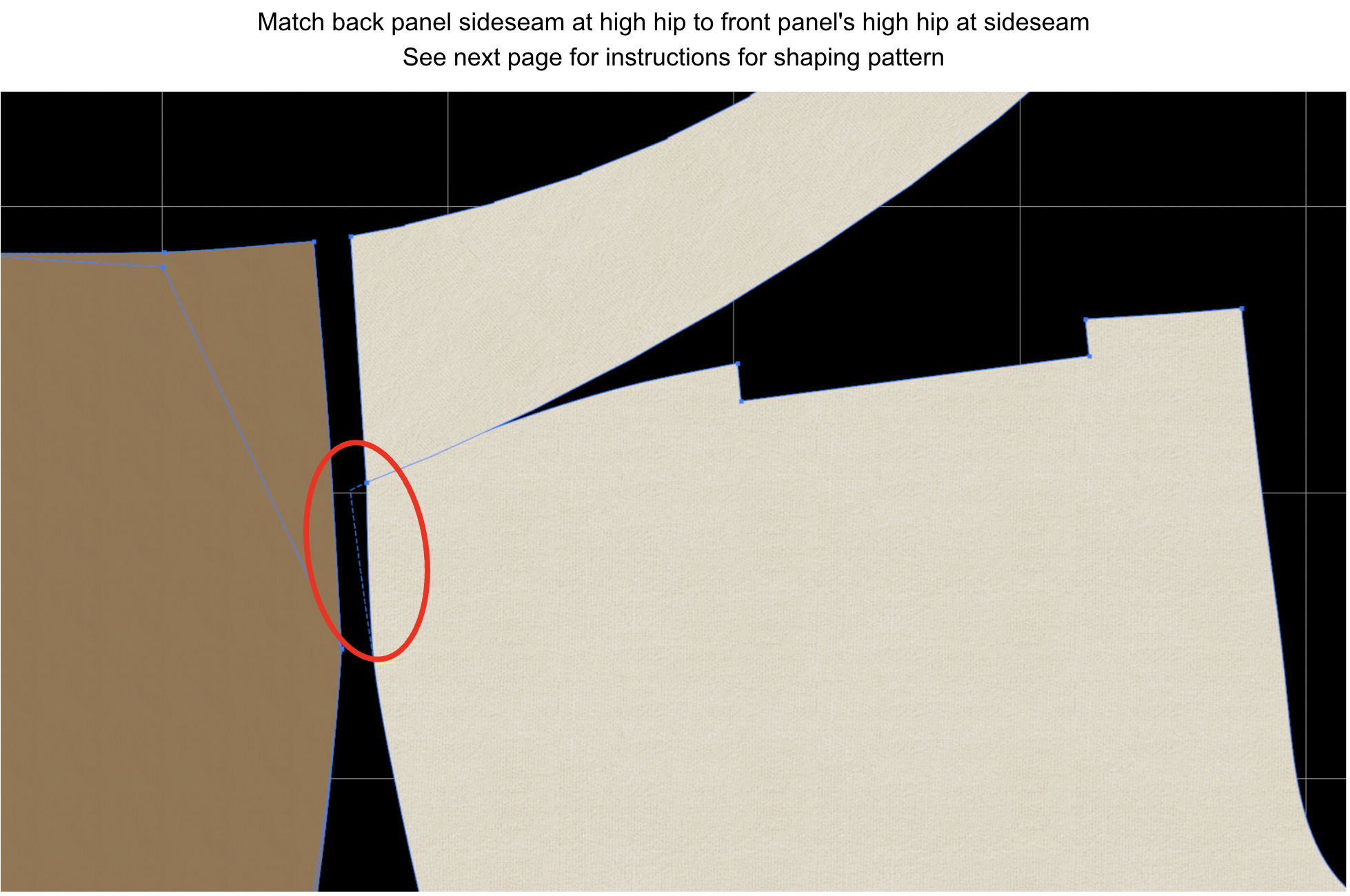

Here are two fit correction examples for the same garment regarding the back yoke and side seam. The garment had too much material gathered into the waistband. To remediate the problem and have a garment that sits nicely on the wearer’s hips, the yoke pattern needed to be contoured. To ensure the sideseam is smooth on the body, the front and back panels need similar gradual curves at the side. Below are the before and after images. More examples available upon request.

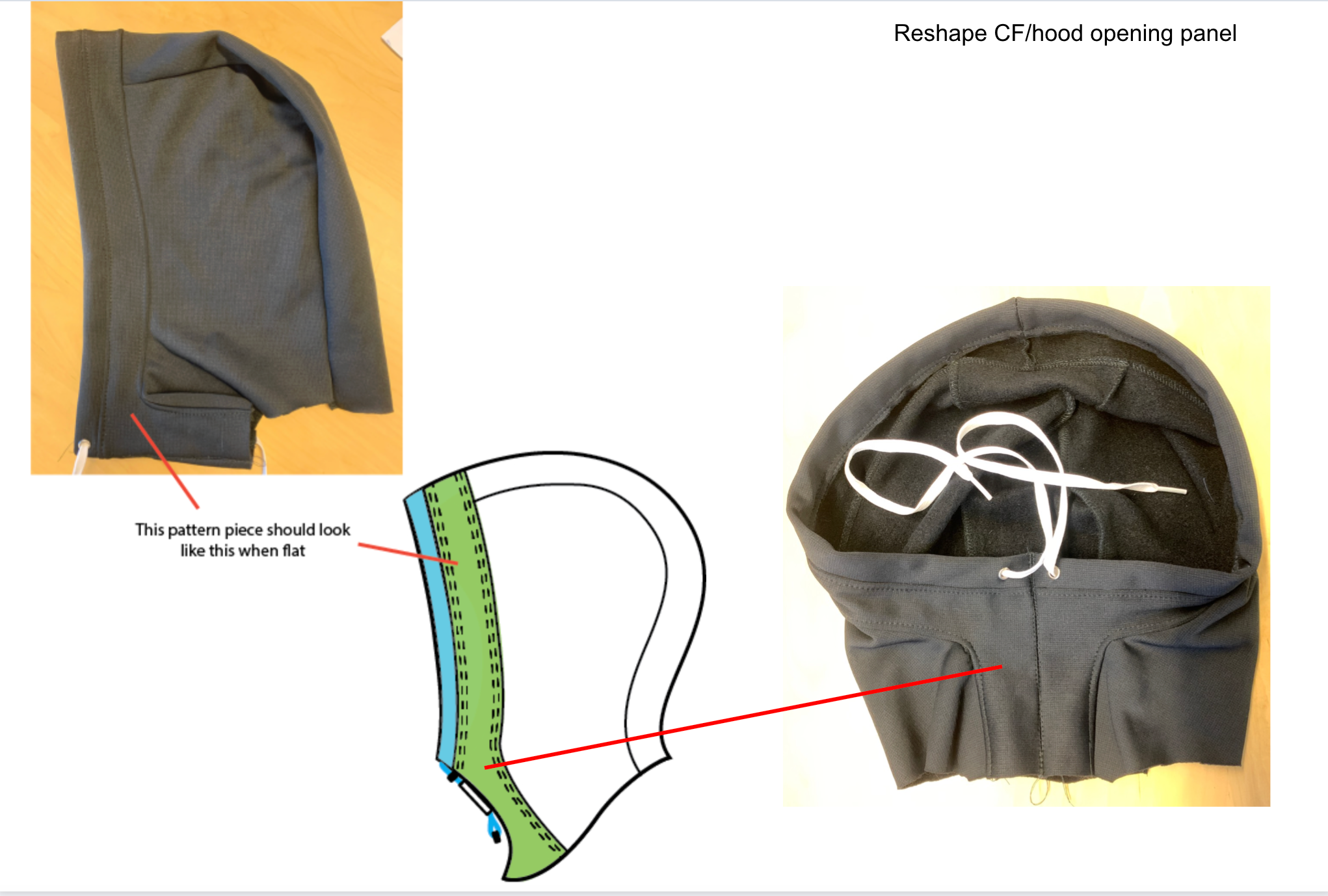

Another example of corrections to a hood, including a mockup.
